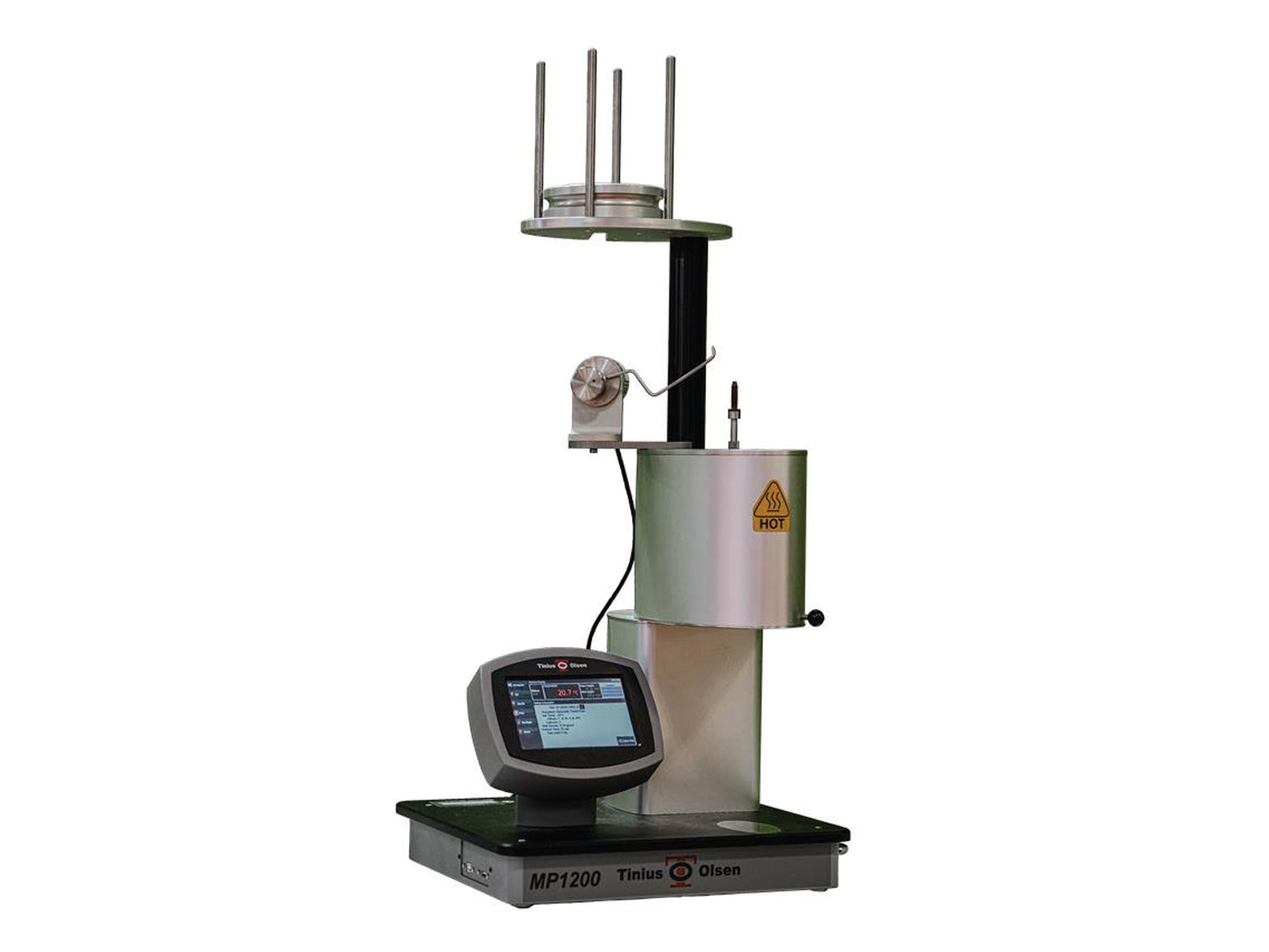

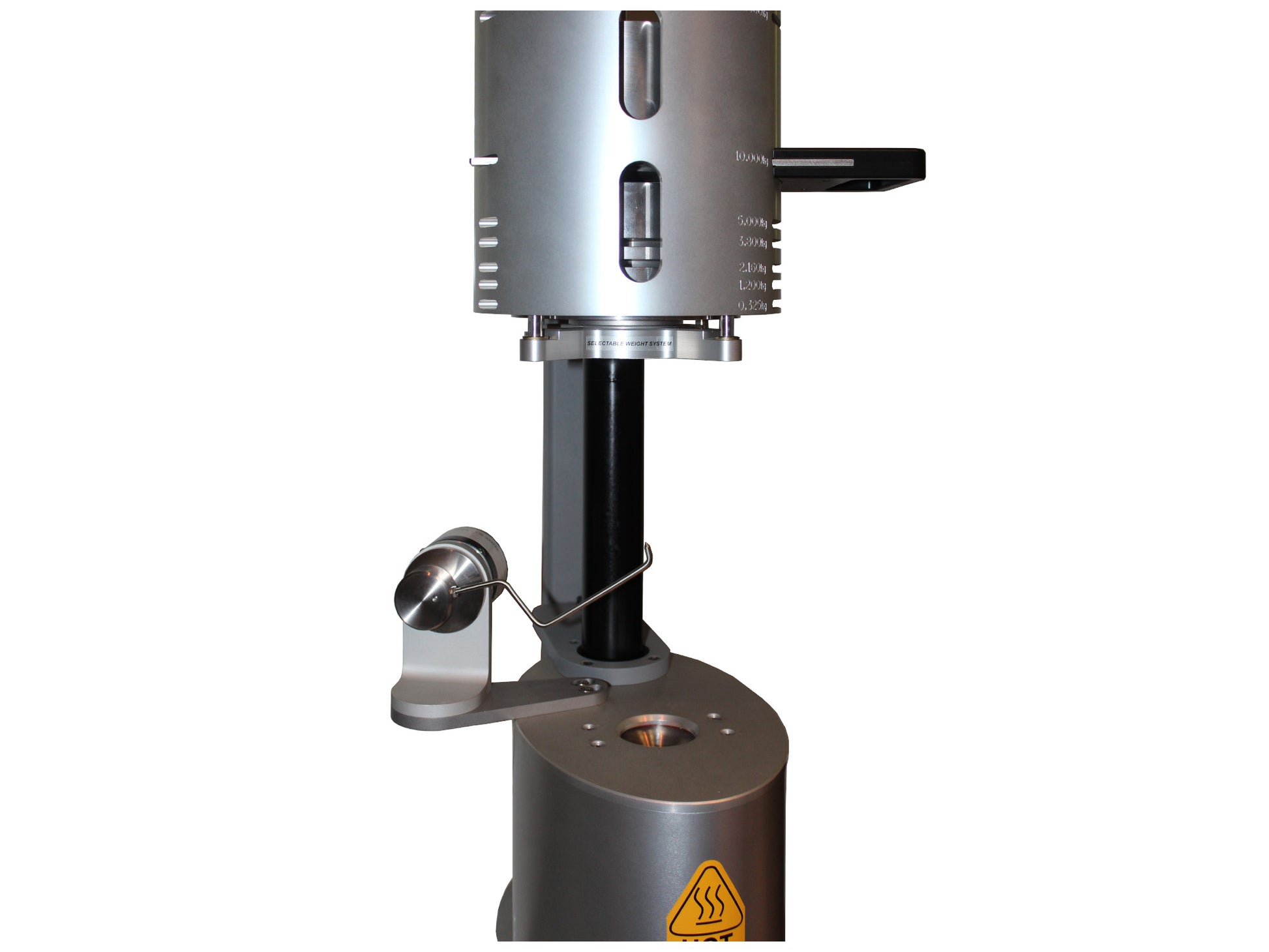

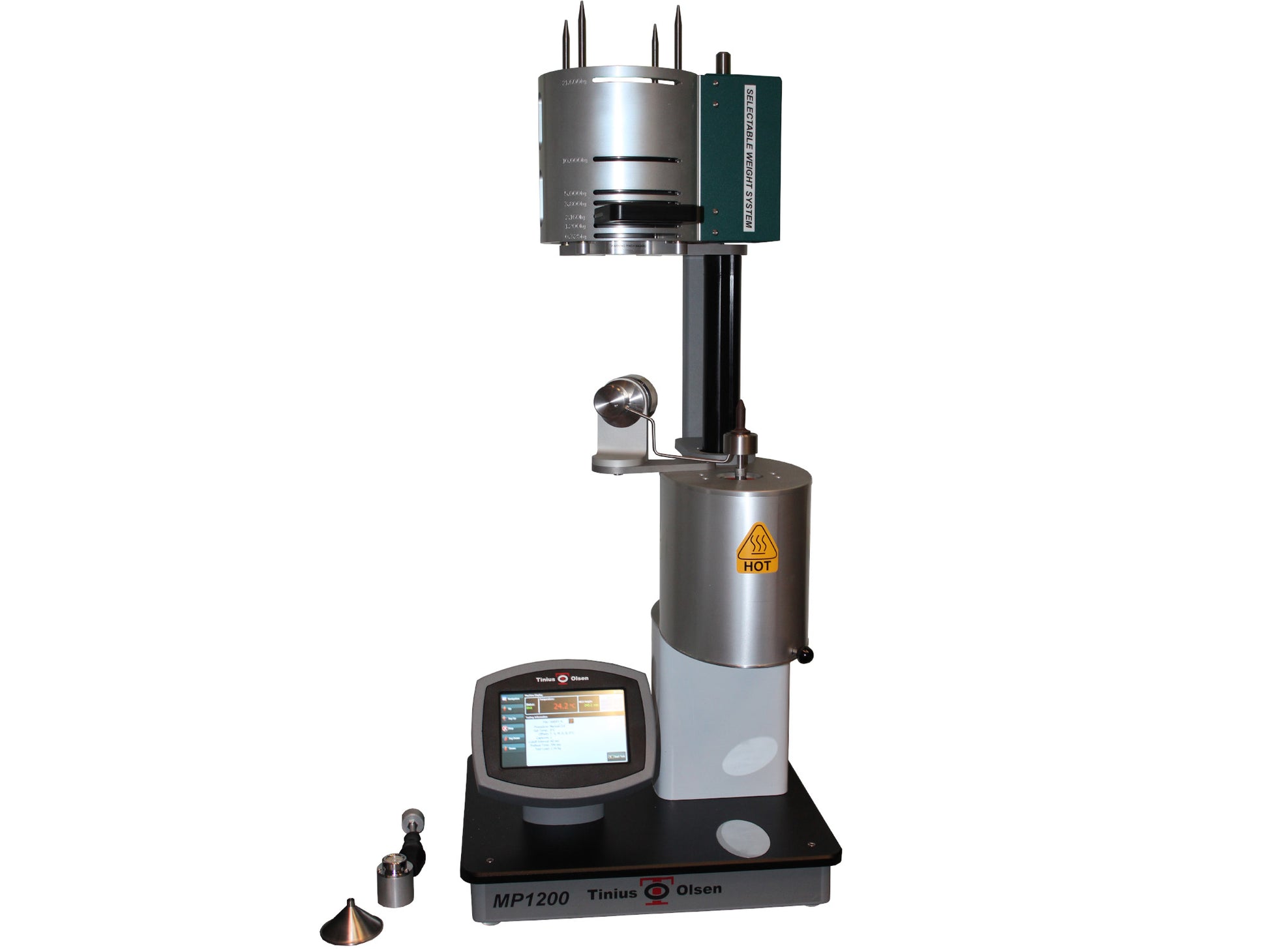

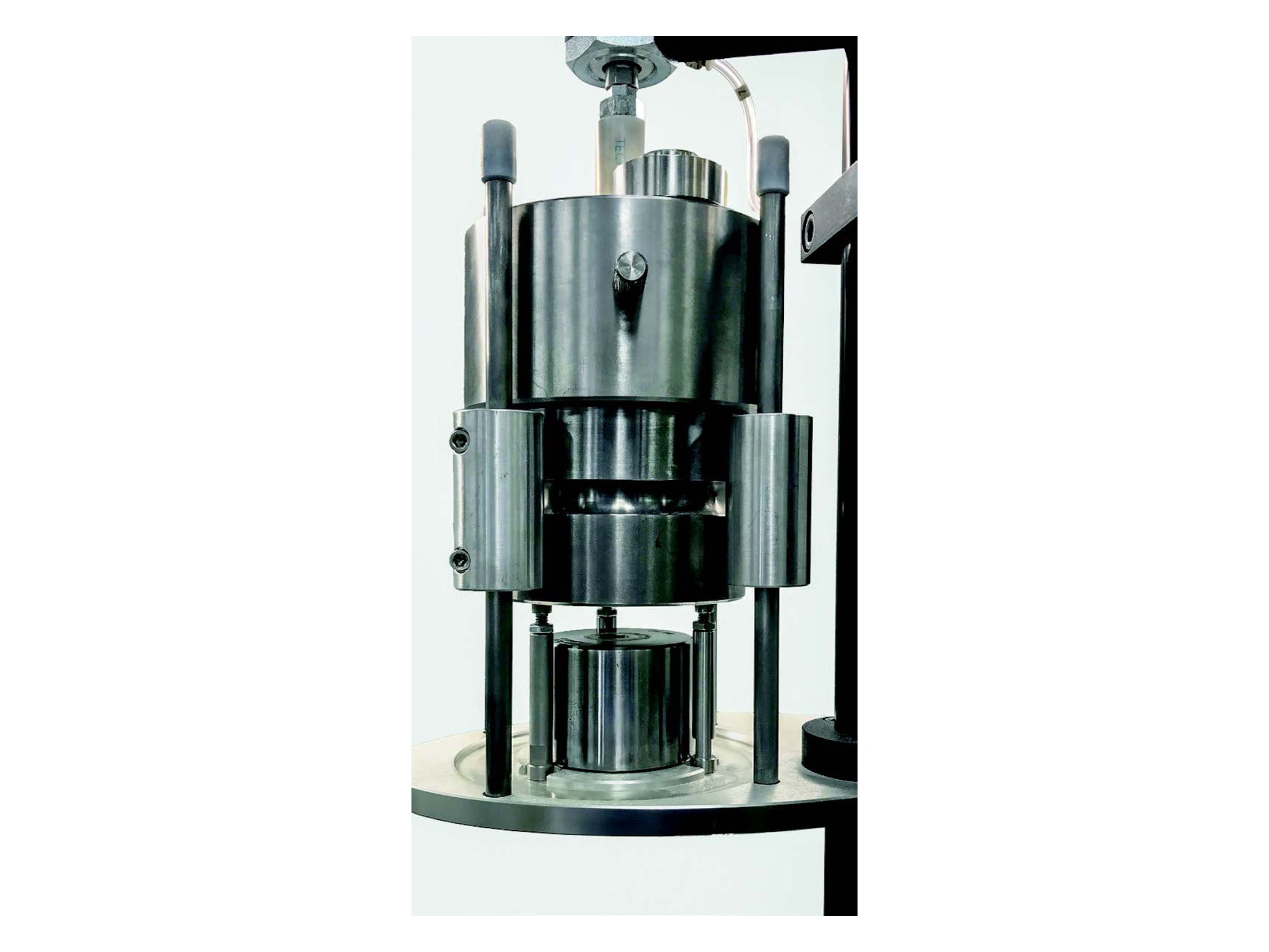

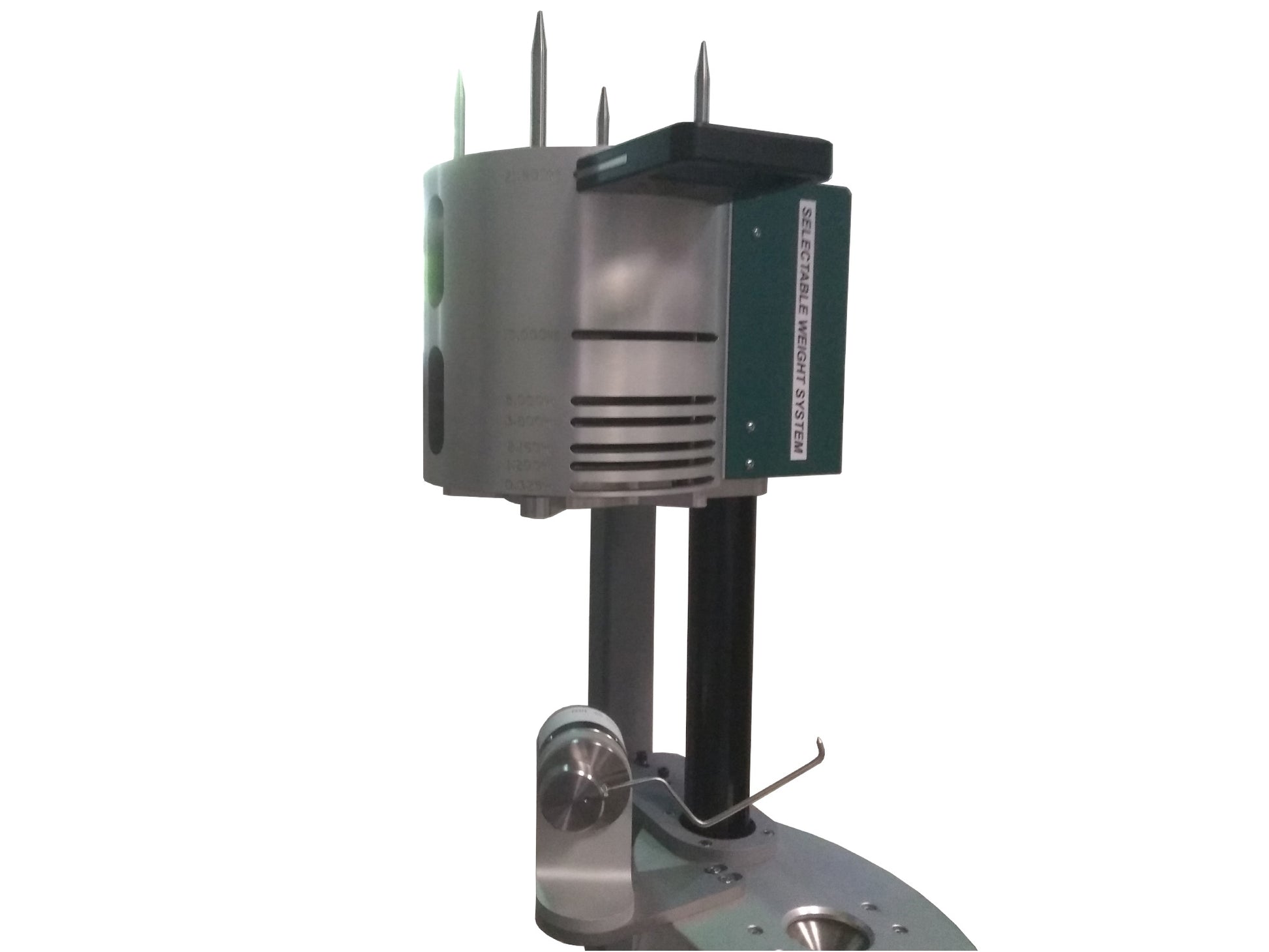

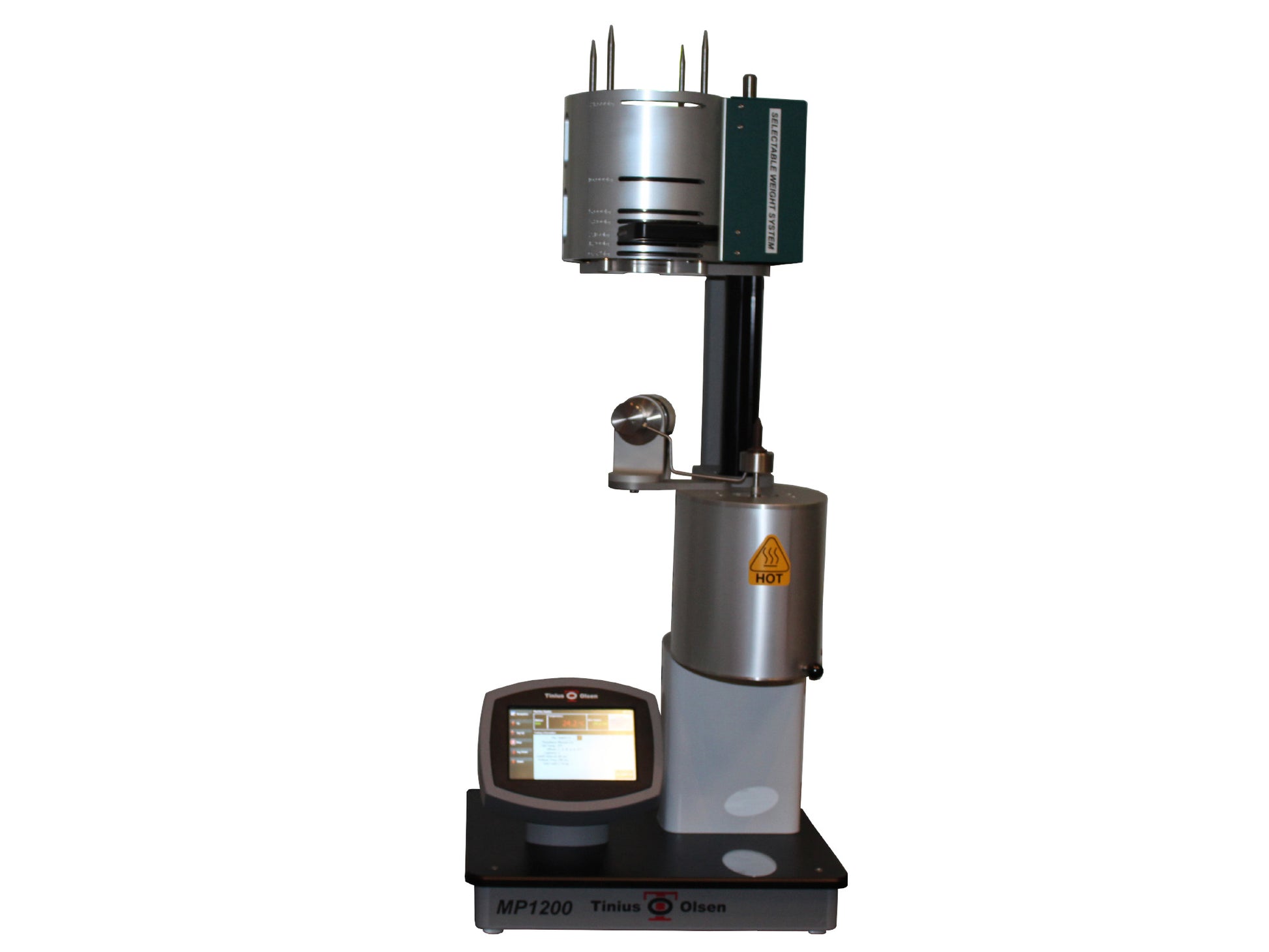

Motorized Melt Flow Tester – Performs ASTM D1238 and ISO 1133 Procedures B and C

Motorized Melt Flow Tester – Performs ASTM D1238 and ISO 1133 Procedures B and C

$20,500.00 USD
$20,500.00 USD
Sale Sold out

Stock: 4 units

  • Dead weight piston plastometer for Procedure B and C tests performed using the PPDT-1200 Automatic Timing Switch and/or half die

  • Results include Flow Rate (Melt Index), Apparent Shear Stress, Shear Rate and Viscosity, and Volume Rate. Melt Density may be entered or calculated from cut-off weight

  • Three-zone precision proportional, integral and derivative (PID) controlled band heater assuring variations of less than +/- 0.25C along test area. Built-in temperature sensor failure

  • Up to 450C displayed to 0.1 C

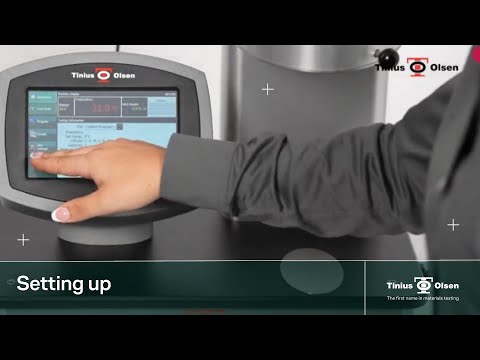

  • Touch screen display with operator driven prompts to easily configure test programs, run tests, and view results

  • Timing functions up to 9999 seconds in 0.01 second increments

  • Stores results for up to 25 tests with ability to recall as needed

  • Export results via USB OR interface to a computer utilizing USB port



Compatible With: PPDT for procedure B, half die for Proc C, PVC orifice for ASTM D3364



Standards: ASTM D1238, ISO 1133, BS 2782, DIN 53735, JIS K7210, ASTM D2116, D2581, D3159, D3275, D3307, D3364, D4550, D5205, D5927, D5990



P/N: 02002310-B01

View full details

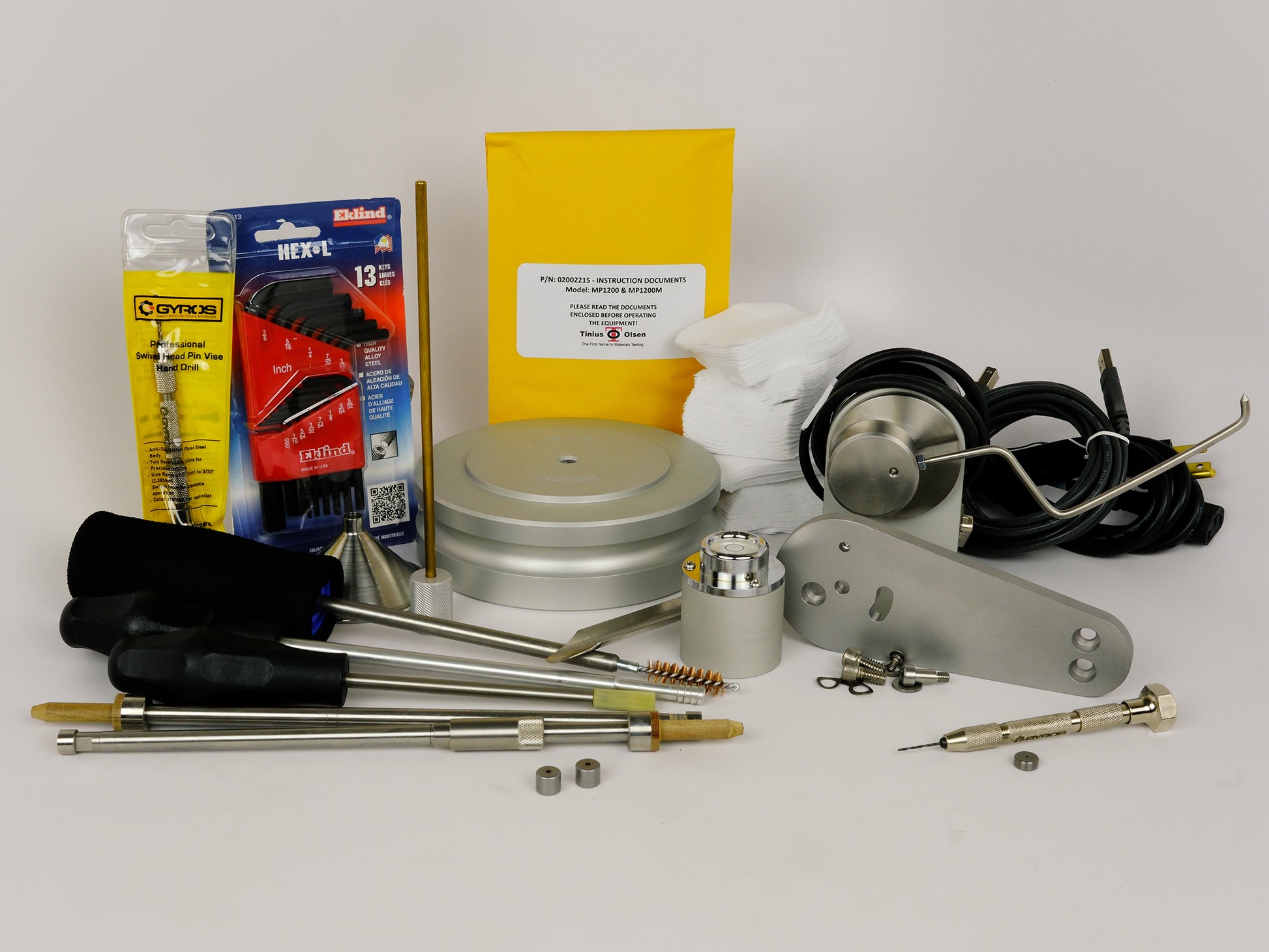

What is Included in the Box?

    • 1 x MP1200 Motorized Melt Flow Tester
    • 1 x PPDT Automatic Timing Switch Fit: MP1200 & MP600
    • 4 x Weight Lowering Device Retaining Rod MP1200M

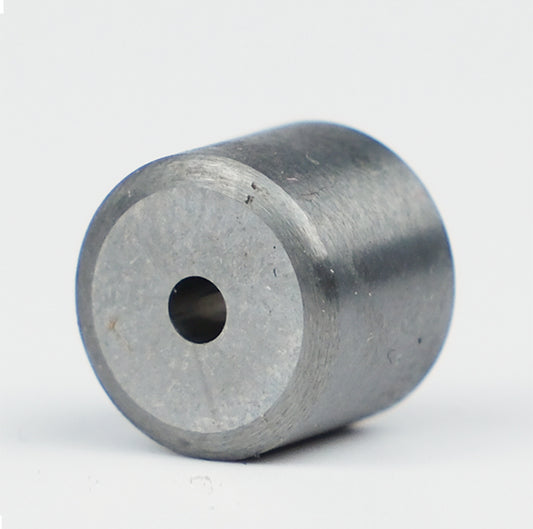

    • 1 x Orifice Half Die Carbide 0.0413" ID x 0.157" Long
    • 1 x Orifice Drill for Half Die Orifice 0.0413" (1.048mm)
    • 1 x Weight Aluminum 2,060 Gram 6" Diameter
    • 1 x Cylinder Brush Handle
    • 1 x Cylinder Brush
    • 1 x Cut-Off Spatula

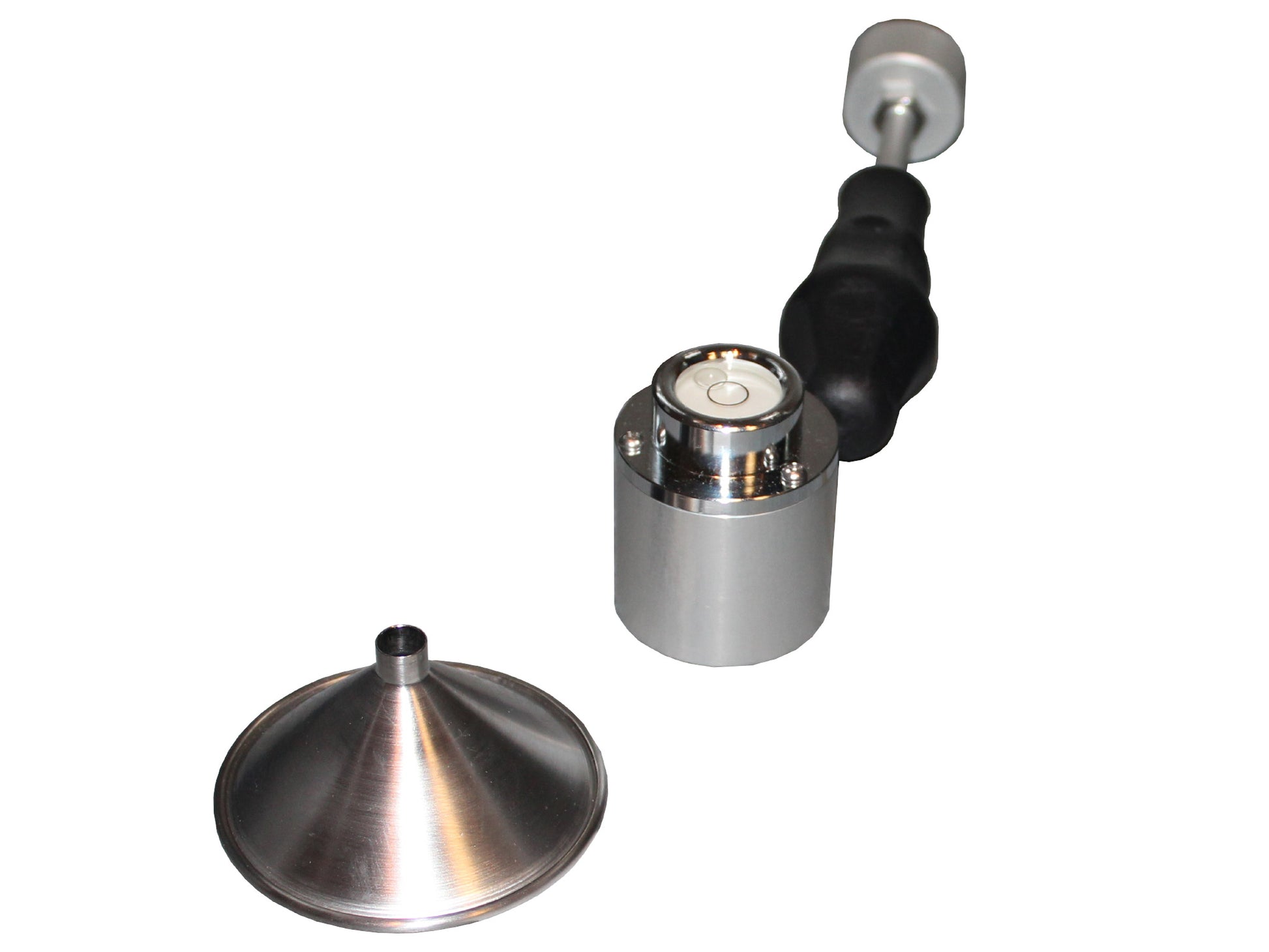

    • 1 x Funnel MP1200
    • 1 x Bubble Level Assembly for MFI
    • 1 x Cylinder Bore Cleaning Tool with Easy Grip Handle
    • 1 x Charging Tool with Easy-Grip Plastic Handle

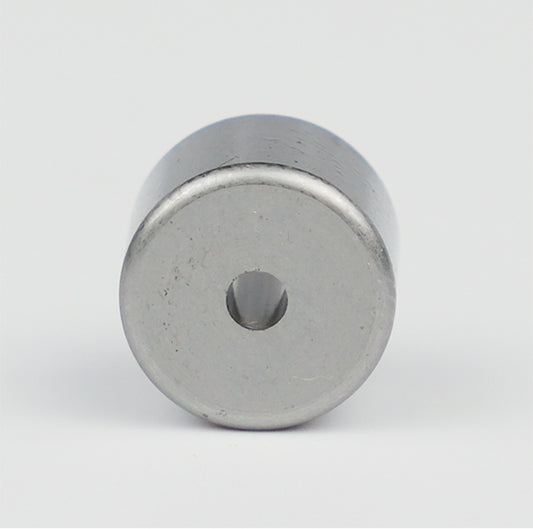

    • 2 x Orifice Tool Steel 0.0825" ID x 0.315"Lg (ASTM D1238 & ISO 1133)
    • 1 x Orifice Drill for Standard Orifice 0.0825" (2.095mm)
    • 1 x Orifice Removal Tool Non-Marring Brass Shaft
    • 1 x Piston Rod MP1200 ASTM
    • 1 x Piston Rod MP1200 ISO
    • 1 x Piston Guide MP1200

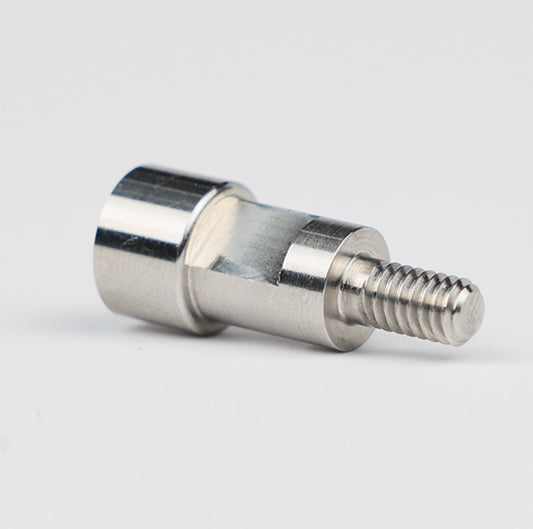

    • 1 x Piston Foot ASTM Stainless Steel ASTM D1238
    • 1 x Piston Foot ISO Stainless Steel ISO 1133: 2011
    • 1 x Cotton Cleaning Patches (500 per bag)
    • 1 x Power Cord
    • 1 x USB A to B cable
    • 1 x Wrench Set, Hex Keys
    • 1 x Instruction Manual

Click on Download Brochure for more information about this product
