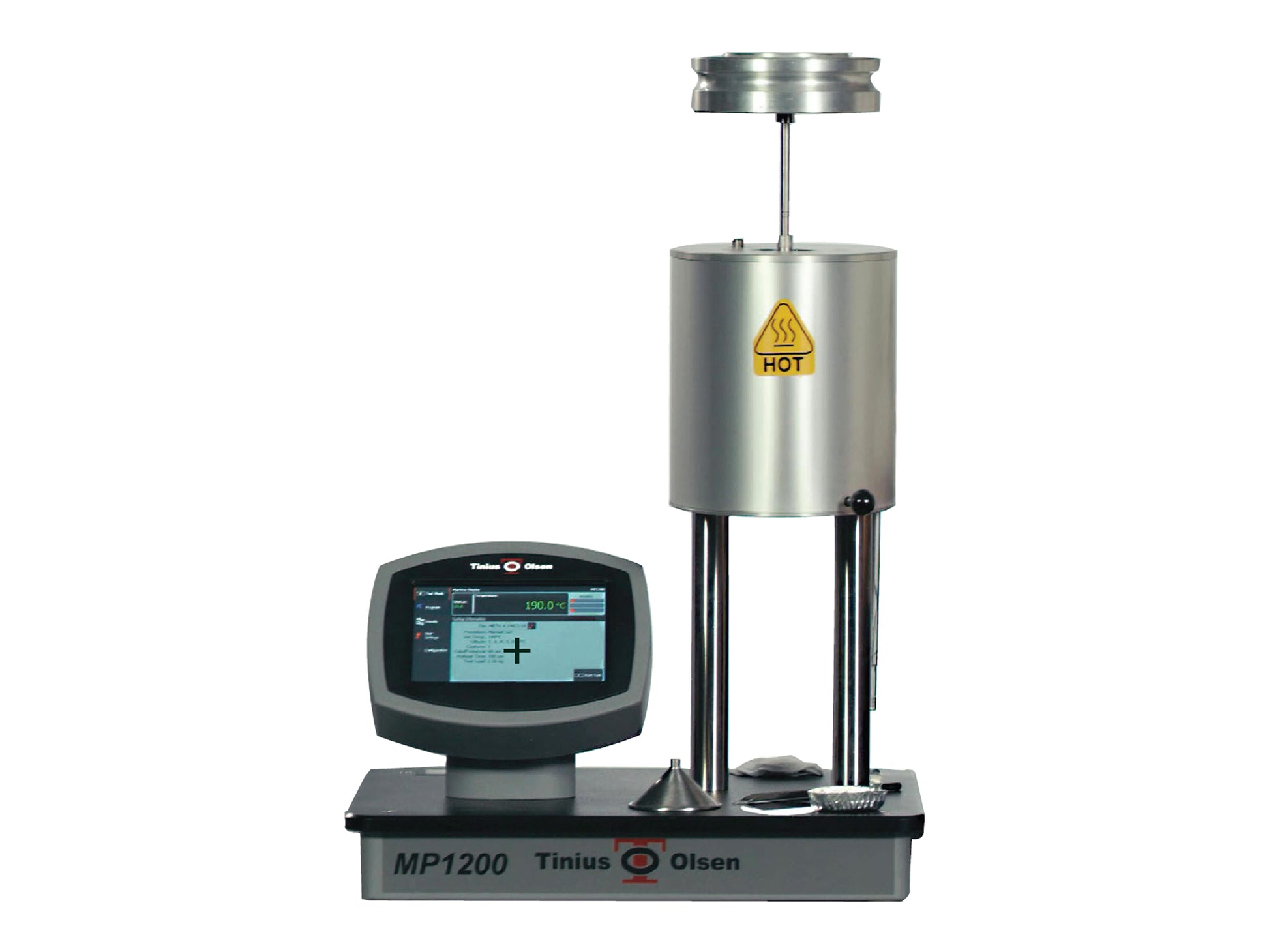

Manual Melt Flow Tester - Performs ASTM D1238 and ISO 1133 Procedure A

Manual Melt Flow Tester - Performs ASTM D1238 and ISO 1133 Procedure A

$10,200.00 USD
$10,200.00 USD
Sale Sold out

Stock: 2 units
  • Dead weight piston plastometer for procedure A – manual operation: calculating flow rate (melt index) for each cut off
  • Three-zone precision proportional, integral and derivative (PID) controlled band heater assuring variations of less than +/- 0.25C along test area. Built-in temperature sensor failure
  • Up to 450C displayed to 0.1 C

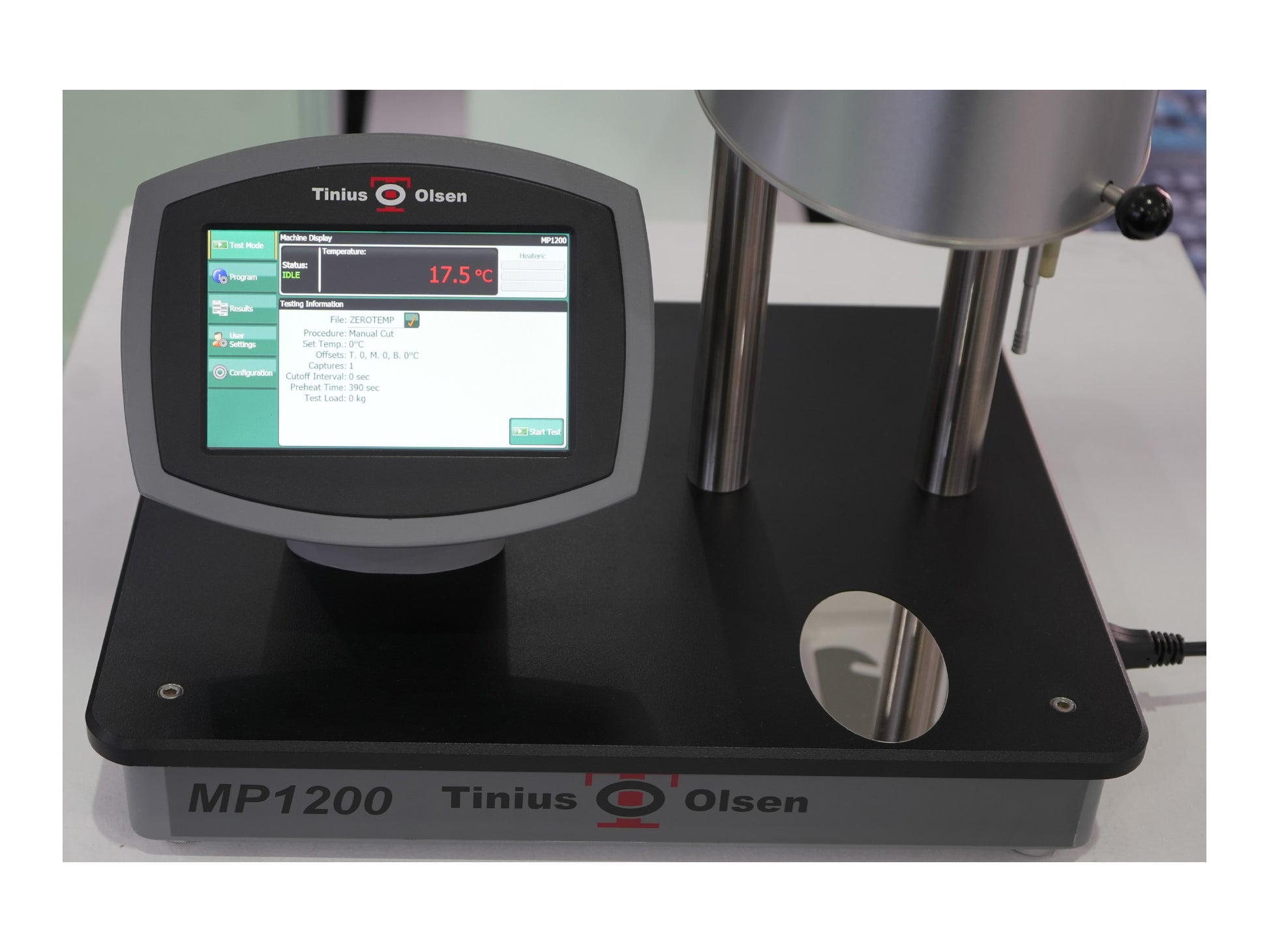

  • Touch screen display with operator driven prompts to easily configure test programs, run tests, and view results
  • Timing functions up to 9999 seconds in 0.01 second increments
  • Stores results for up to 25 tests with ability to recall as needed

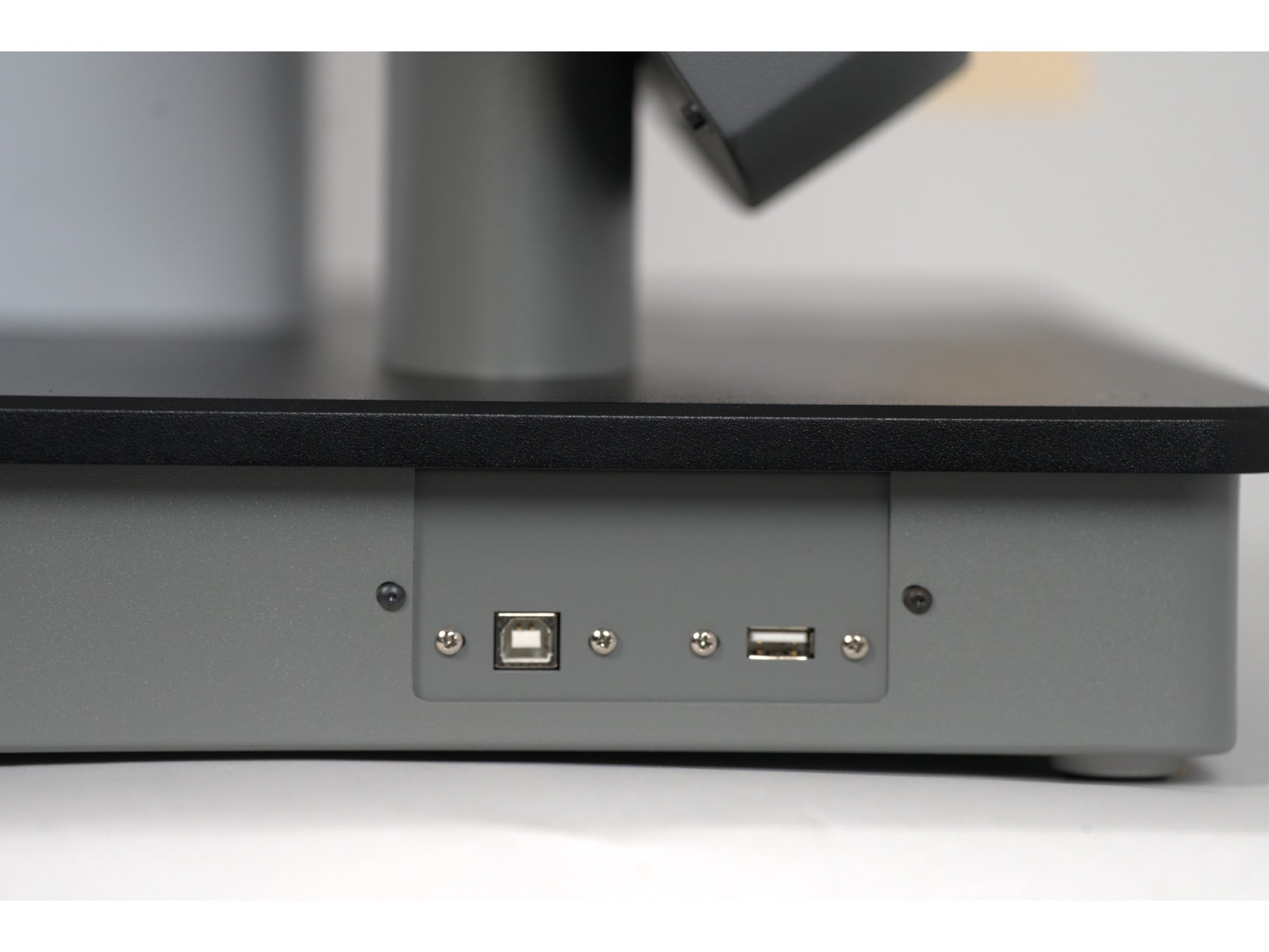

  • export results via USB OR interface to a computer utilizing USB port



Compatible With: PPDT for procedure B, half die for Proc C, PVC orifice for ASTM D3364,



Standards: ASTM D1238, ISO 1133, BS 2782, DIN 53735, JIS K7210, ASTM D2116, D2581, D3159, D3275, D3307, D3364, D4550, D5205, D5927, D5990



P/N: 02002300-B01

View full details

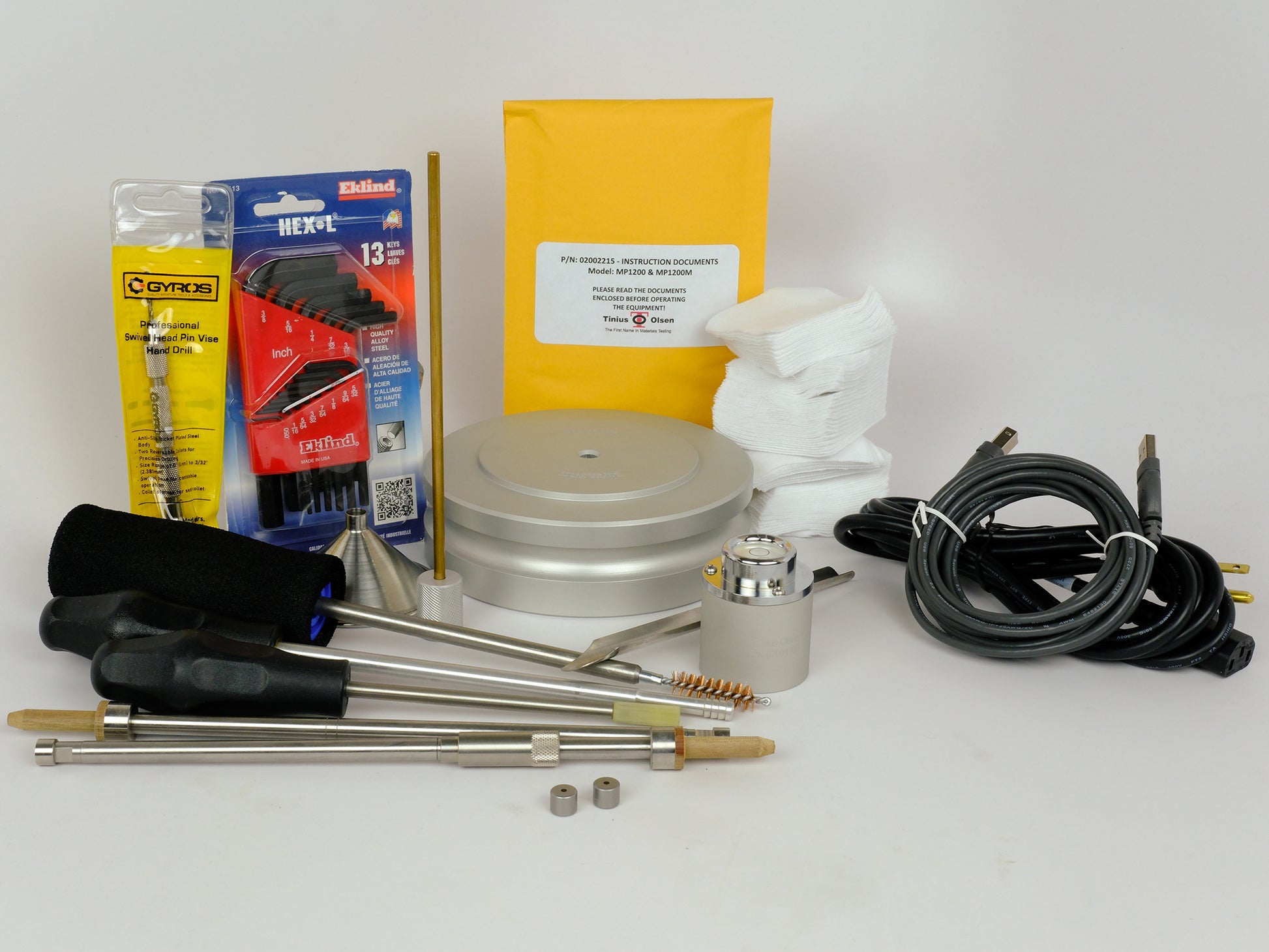

What is Included in the Box?

    • 1 x MP1200 Manual Melt Flow Tester
    • 1 x Weight Aluminum 2,060 Gram 6" Diameter
    • 1 x Cylinder Brush Handle
    • 1 x Cylinder Brush
    • 1 x Cut-Off Spatula
    • 1 x Funnel MP1200
    • 1 x Bubble Level Assembly for MFI
    • 1 x Cylinder Bore Cleaning Tool with Easy Grip Handle
    • 1 x Charging Tool with Easy-Grip Plastic Handle
    • 2 x Orifice Tool Steel 0.0825" ID x 0.315"Lg (ASTM D1238 & ISO 1133)
    • 1 x Orifice Drill for Standard Orifice 0.0825" (2.095mm)
    • 1 x Orifice Removal Tool Non-Marring Brass Shaft
    • 1 x Piston Rod MP1200 ASTM
    • 1 x Piston Rod MP1200 ISO
    • 1 x Piston Guide MP1200
    • 1 x Piston Foot ASTM Stainless Steel ASTM D1238
    • 1 x Piston Foot ISO Stainless Steel ISO 1133: 2011
    • 1 x Cotton Cleaning Patches (500 per bag)
    • 1 x Power Cord
    • 1 x USB A to B cable
    • 1 x Wrench Set, Hex Keys
    • 1 x Instruction Manual

Click on Download Brochure for more information about this product
